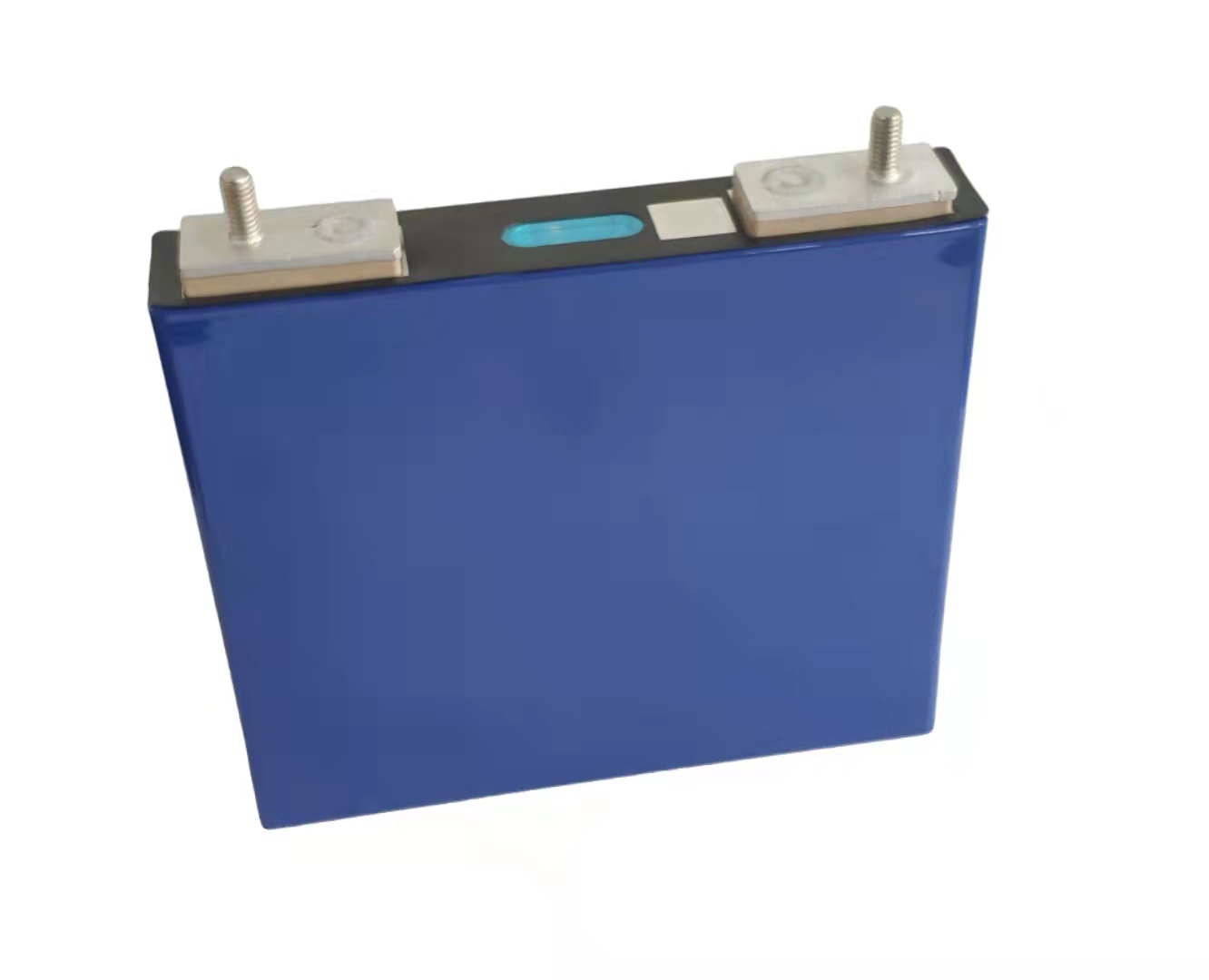

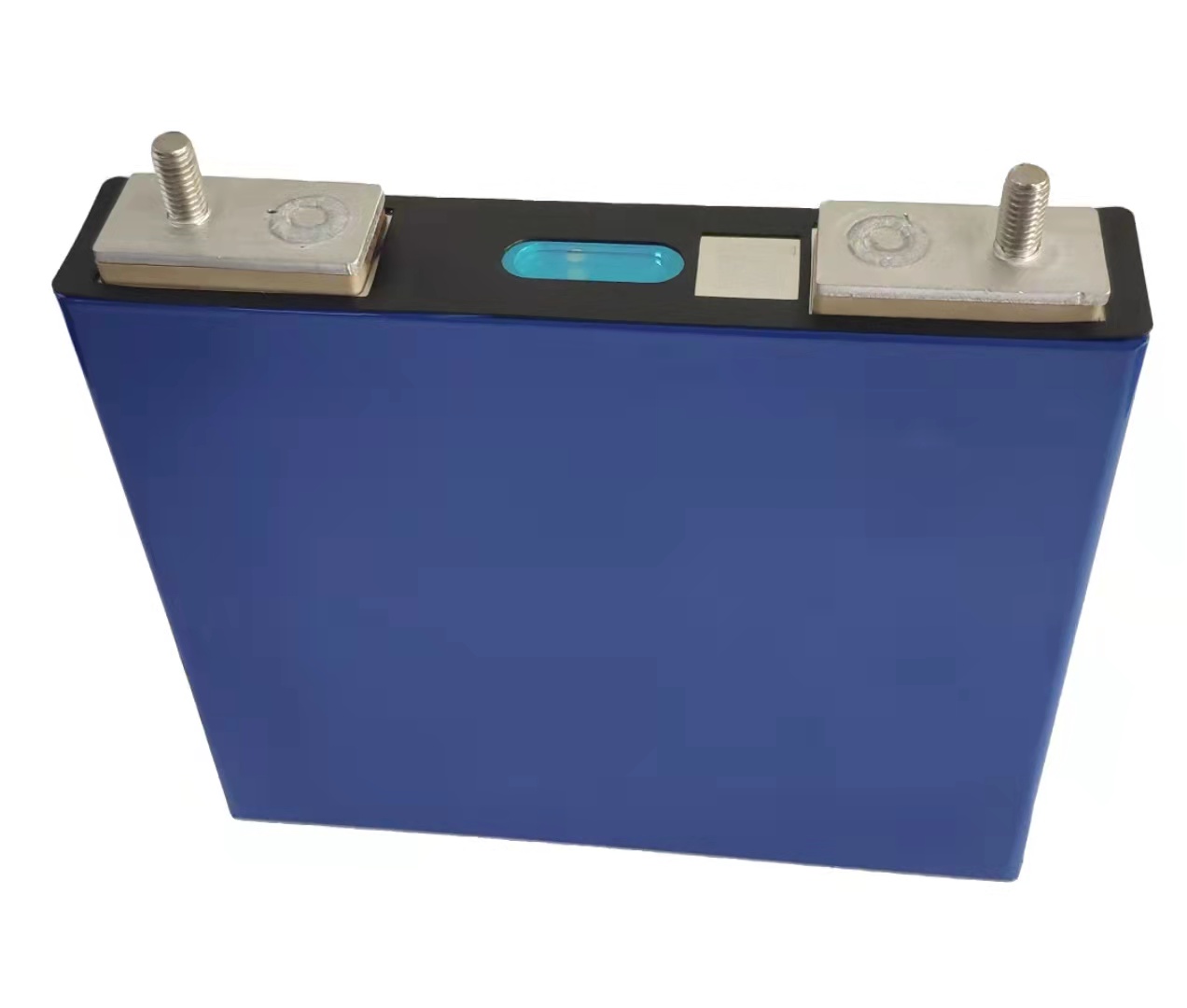

Long Cycle Life 3000 Times 3.2v 50ah LiFePO4 Lithium Ion Battery for offroad EV use

Rated Capacity: 50Ah

Standard discharge, fresh cell

Nominal Voltage:3.2V

Operating Voltage: 2.0~3.65V (cell temperature）≥-10℃;  1.8~3.65V (cell temperature）＜-10℃

Impedance≤0.7mΩ

30% SOC fresh cell, AC.1kHz, 25±2℃

Typical Dimension: 27*148*134mm

compression force 150N~200N，



Cell Weight: 1110±20g

Monthly Self-discharge ≤3.0%

25±2℃, 30% SOC, fresh cell after 3 months

Shipment Status: 3.275~3.305V; 30±3% SOC，25±2℃



Cycle Life≥3000cycle test by standard charge anddischarge method



Optimal Operating Temperature Charge 15~+35℃

Discharge: 10~+35℃

Storage Conditions: -20~+60℃

storage ambient humidity≤70%RH



Standard Charge Current:  1C , 25±2℃

Maximum Continuous Charge Current : 1.5C, 25±2℃

Maximum Pulse Charge Current : 2C, 25±2℃，50% SOC，30s

Standard Charge Voltage: 3.65V; Cell maximum voltage;



Standard Discharge Current: 1C. 25±2℃

Maximum Continuous Discharge Current: 4C

Maximum Pulse Discharge Current :6C
