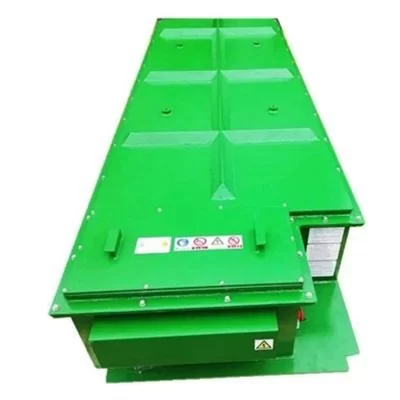

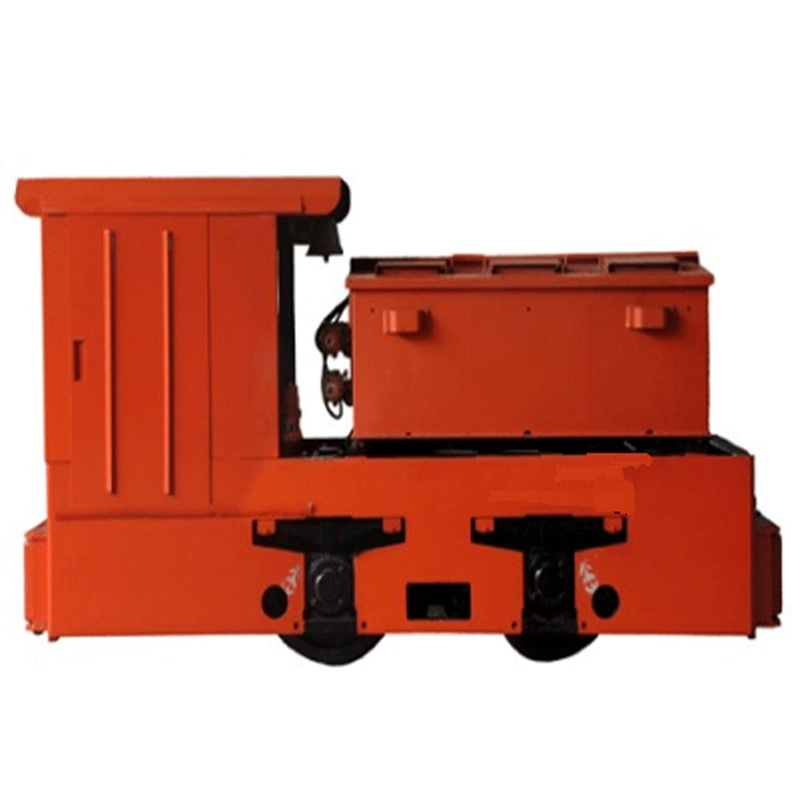

Large Capacity LiFePO4 192V 500ah Lithium Battery for Mine Locomotive，48V mining power supply，Mine flameproof lithium-ion battery power supply

0 Pollution —Conforms to RoHS, No acid fog produced during work; Recycled and reused after the life cycle.

Free Maintenance—No need to manual maintenance& regularly add water, the BMS can Remote monitoring battery state

High security—Passed the most stringent MT/T test in China.No fire or explosion after colliding ,squeezing, pinprick,firing, impacting,t high& low temperaturer experiments.

Fast charging—- Supports charged&discharge in one hour. The common forklift model can charge within 2 hours.

SKU: evoke-002 Category:

Lead Acid VS LIFEPO4 battery

LiFePO4 battery Lead acid battery
Cycle life 3000 times free charge  1000 times fully charge/discharge
Life span 5years 2years
Safety No fire,no explosion,no corrosion,no pollution Corrosion, pollution
Fastcharge support 2~3H  Not allowed(8~12H)
Charge rate 95% 75%
mainting No need Timely mainting,add distilled water example 48V/600ah，need 30L every week in Summer
Work temperature -20~55,and has high or low temperature protection Bad low-temperature, perfomance,it will be broken if temperature lower than 0
Usage quantity in 5years 1pcs 4pcs

*Lead acid discharge graph *LiFePo4 discharge graph Features:leas acid discharge has the huge slope of curve,which will lead to unstable moto application;lifepo4 battery has the stable discharge plat,which will promise stable operation.



FORKLIFT BATTERY LIST

Project 1.5-2.5T forklift 3-3.5T forklift motor tractor
spec 48V300AH 48V360AH 80V400AH 80V500AH 80V700AH
Rated?volt(V) 51.2 25.6 83.2 83.2 83.2
Rated?capacity(AH) 300 360 400 500 700
electric?quantity??WH?? 15.36 17.28 33.2 41.6 58.24
Length mm 820 812 958 958 1180
Width mm 390 737 675 675 600
Height mm 460 470 670 670 674
Weight KG  400 300 500 600 750
Work volt(V) 40-54.4 40-54.4 65-87 65-87 65-87
Charge volt(V) 58.4 58.4 94.9 94.9 94.9
Charge current A 150 150 150 150 150
constant work current A 150 150 150 200 200
cycle life 3000 3000 3000 3000 3000

ELECTRIC WALKIE BATTERY LIST

Project Electric walkie
spec 24V50AH 24V100AH 24V150AH 24V200AH
Rated volt(V) 25.6 25.6 25.6 25.6
Rated capacity(AH) 50 100 150 200
electric quantity WH 1.28 2.56 3.84 5.12
Length mm 550 624 790 624
Width mm 68.8 146 212 218
Height mm 450 525 462 537
Weight KG 30 60 75 100
Workvolt (V) 25.63 25.63 25.6 3 25.63
Chargevolt(V) 29.2 29.2 29.2 29.2
Chargecurrent A 25 50 75 100
constant work current A 50 100 150 200
cycle life 3000 3000 3000 3000

Products Application

Technical Parameter: Lifepo4 battery: 3.2V/50Ah Battery voltage/capacity: 24V/200Ah Motor power: 3.0KW Use time: 6-8h

Feature: Case sealed treatment, remote monitoring , high rate charging full charge in 2 hours, cycle life 3,000 times or working time 10,000 hours.

Technical Parameter: Forklift type: 3T Lifepo4 battery: 3.2V/60Ah Battery voltage/capacity: 80V/300Ah Rated power of working: 12KW Rated power of oil pump: 12KW Use time: 6~8h

Feature: Case sealed treatment, remote monitoring , high rate charging full charge in 2 hours, cycle life 3,000 times or working time 10,000 hours.
