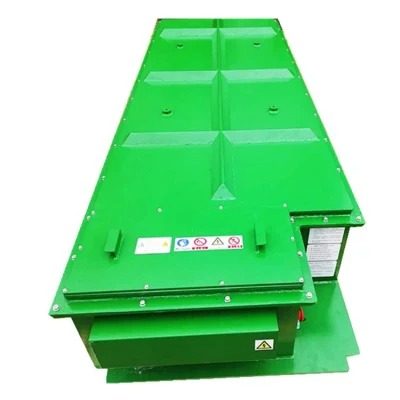

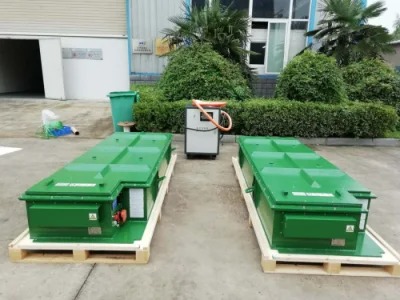

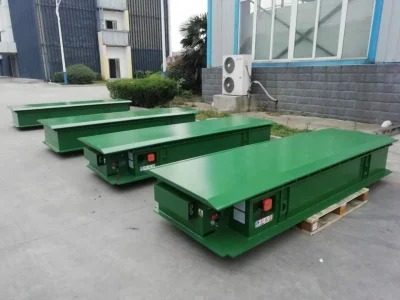

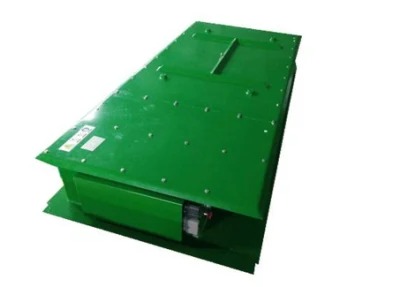

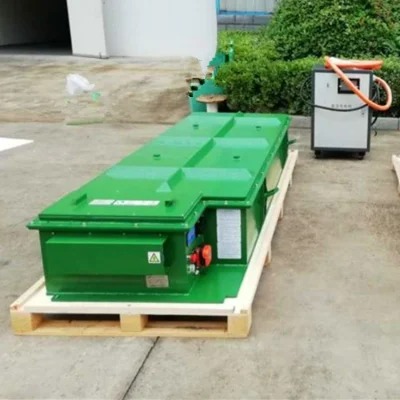

battery power for 8 ton mining battery locomotive on the underground mine
There are 2 type battery system for mining locomotives, one is lead-acid battery, and the other is lithium-battery locomotive. Locomotive with lithium battery has the advantages of Maintenance free, quick charging time of 2-3 hours, and long service life up to 5-8 years.
Below is the lithium battery specification table used for 5 ton battery locomotive.
| Item | General Parameter | |
| (Cell Model) | 100AH | |
| Casing material for single cell | Aluminum alloy | |
| Standard capacity(0.3CA) | 500Ah | |
| Rated voltage | 192V | |
| Max.Charge voltage | 219V | |
| Cut-off voltage | 165V | |
| Standard charge current | ≤200A | |
| charging Time | About 2.5 h | |
| Continuous discharge current | 200A | |
| Peak discharge current | 500A | |
| Battery dimension | ≤2910*1100*390mm | |
| Total weight(Approx.) | About1400 kg | |
|
Charge method (CC/CV) |
Standard | 0ºC~45ºC |
| discharge | -20ºC~60ºC | |
| Project | 1.5-2.5T forklift | 3-3.5T forklift | motor tractor | ||
| spec | 48V300AH | 48V360AH | 80V400AH | 80V500AH | 80V700AH |
| Rated volt(V) | 51.2 | 25.6 | 83.2 | 83.2 | 83.2 |
| Rated capacity(AH) | 300 | 360 | 400 | 500 | 700 |
| electric quantity（WH） | 15.36 | 17.28 | 33.2 | 41.6 | 58.24 |
| Length（mm） | 820 | 812 | 958 | 958 | 1180 |
| Width（mm） | 390 | 737 | 675 | 675 | 600 |
| Height（mm） | 460 | 470 | 670 | 670 | 674 |
| Weight（KG） | 400 | 300 | 500 | 600 | 750 |
| Work volt (V) | 40-54.4 | 40-54.4 | 65-87 | 65-87 | 65-87 |
| Charge volt(V) | 58.4 | 58.4 | 94.9 | 94.9 | 94.9 |
| Charge current（A） | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 |
| constant work current（A） | ≤150 | ≤150 | ≤150 | ≤200 | ≤200 |
| cycle life | ≥3000 | ≥3000 | ≥3000 | ≥3000 | ≥3000 |
